Logging in AWE

Audio Weaver generates several log files that capture communication between its components. These logs are useful for diagnosing connection issues, tracing command sequences, and debugging integration problems.

Architecture Overview

The diagram below shows which log files correspond to each communication channel between AWE components:

┌─────────────────┐                        ┌──────────────────────────┐
│   Matlab / MCR  │──── port: 15001 ───────▶│                          │
│                 │◀───────────────────────│      AWE Server          │──── packet.log ────▶ [ AWE Core / Target ]
│  notify.log     │                        │                          │
│  command.log    │                        │  matlab_command.log      │
└────────┬────────┘                        │  server_command.log      │
         │ port: 14001                     │  event_logging.txt       │
         ▼                                 │  awecore_logging.txt     │
┌─────────────────┐                        └──────────────┬───────────┘
│ AWE Designer GUI│◀──────────── awe_server.log ──────────┘
└─────────────────┘

Optional User Tools (e.g. Python scripts):
  Tool A ◀── port: 15007 ──▶ server2_command.log
  Tool B ◀── port: 15009 ──▶ server3_command.log
  Tool C ◀── port: 15011 ──▶ server4_command.log

Log File Reference

Log Name Description Current Session Log Archived Logs awe_server.ini key
matlab_command.log Text-based ("AWS") commands/replies between Matlab and AWE Server. Commands from Matlab are RX; replies to Matlab are TX. Bin\win32-vc100-rel\logs\matlab_command.log Bin\win32-vc100-rel\logs\<date>\<date>_matlab_command.log [Logging]
Enable=1
MatlabLog=1
packet.log Binary ("AWB") packets/replies between AWE Server and AWE Core. Packets can be sent over USB, UART, TCP/IP, or SPI. Bin\win32-vc100-rel\logs\packet.log Bin\win32-vc100-rel\logs\<date>\<date>_packet.log [Logging]
Enable=1
PacketLog=1
awe_server.log Connection between Designer GUI and AWE Server for real-time streaming of inspector data (e.g. updating meters and sinks). Only created when the connection is active. Shares the same socket as server_command.log. Bin\Assets\logs\aweserver.log Bin\Assets\logs\<date>\<date>_aweserver.log [Logging]
Enable=1
server_command.log Direct connection between Designer GUI and AWE Server, logged from AWE Server's perspective. Captures similar data as awe_server.log but with some items filtered out. Only created when the connection is active. Shares the same socket as awe_server.log. Bin\win32-vc100-rel\logs\server_command.log Bin\win32-vc100-rel\logs\<date>\<date>_server_command.log [Logging]
Enable=1
CommandLog=1
server_command2.log
server_command3.log
server_command4.log
(optional)		 AWE Server allows external applications (e.g. a Python script) to send text-based ("AWS") tuning commands to AWE Core via TCP/IP ports 15007, 15009, and 15011. Only created when the connections are active. Bin\win32-vc100-rel\logs\server<N>_command.log Bin\win32-vc100-rel\logs\<date>\<date>_server<N>_command.log [Logging]
Enable=1
Server2Log=1
Server3Log=1
Server4Log=1

Example Log Entries

matlab_command.log

2018/10/30  15:45:53.734  RX  0:audio_pump,"bell.wav"
2018/10/30  15:45:54.365  TX  0:success,48000

packet.log

2018/10/30  12:18:20.011  TX  00020019  00020019
2018/10/30  12:18:20.011  RX  000c0000  00000000  00000001  beef0001

awe_server.log

2018/10/31  11:20:37.855  TX  0,poll_get_value,Meter1.value[0]
2018/10/31  11:20:37.855  RX  success,38925,float,0.0494126565754

server_command.log

2018/10/31  11:35:05.034  RX  0:connect,localhost,15003
2018/10/31  11:35:05.034  TX  0:success,localhost,15003

Internal Logs

Note

The following logs capture internal exchanges between AWE Designer components during normal operation. They are typically only useful to DSP Concepts developers doing feature development and bug fixing.

Log Name Description Current Session Log Archived Logs awe_server.ini key
command.log Commands sent from Matlab to Designer GUI. Response is success/failure and/or returned values on queries. Commands from Designer GUI are RX; replies from Matlab are TX. Bin\Assets\log\command.log Bin\Assets\log\<date>\<date>_command.log [Logging]
Enable=1
notify.log (Internal) Internal notification events sent from Designer GUI to Matlab (e.g. menu clicks). These commands do not expect a response. Shares the same socket as command.log. Bin\Assets\log\notify.log Bin\Assets\log\<date>\<date>_notify.log [Logging]
Enable=1

Example Log Entries

command.log — no query:

2018/10/16  10:06:46.539  RX  DestroyInspector,1,ProgressBar
2018/10/16  10:06:46.547  TX  success

command.log — with query:

2018/10/16  09:37:27.326  RX  GetCanvasSize,2,Top
2018/10/16  09:37:27.326  TX  success,2,1,70,95

notify.log:

2018/10/30  15:38:35.280  OnClickCanvas,1,Top,37,23

Native AWE Core Logging

AWE Server supports structured logging from the AWE Core runtime on the Native target. These logs appear both in the AWE Server Messages tab and in log files under Bin\win32-vc142-rel\logs\. Logging can be enabled and disabled from AWE_Server-> Preferences, and additional settings are available in the [Logging] section of AWE_Server.ini.

AWE Core Message Log

The AweMsgLoggingEnable key enables logging of internal AWE Core messages. This log replaces the older awelog.txt and captures a broader range of runtime events.

awe_server.ini key Default Description
AweMsgLoggingEnable 0 Enable AWE Core message logging. Output goes to logs/awecore_logging.txt and the AWE Server Messages tab.
AwecoreLoggingLevel 3 (INFO) Minimum severity level to log (see table below).
AwecoreLoggingType -1 (all) Bitmask controlling which message categories are logged (see table below).

Log Levels

Value Macro Description
0 AWE_LOG_LEVEL_NONE No logging
1 AWE_LOG_LEVEL_ERROR Errors only
2 AWE_LOG_LEVEL_WARNING Warnings and errors
3 AWE_LOG_LEVEL_INFO Informational messages, warnings, and errors (default)
4 AWE_LOG_LEVEL_DEBUG All messages including debug output

Log Type Mask

AwecoreLoggingType is a bitmask. Set it to -1 to accept all message types, or sum specific values to include only those categories. To exclude categories, subtract their values from -1 (e.g. to suppress module get/set access logs: -1 - 512 - 1024 = -1537).

Bit value Macro Description
1 AWE_LOG_DATA_DUMP Raw data dumps
2 AWE_LOG_SYSTEM_MSG General system messages
4 AWE_LOG_PACKET_PROCESSING_MSG Packet processing activity
8 AWE_LOG_AWB_LOADING_MSG AWB file loading events
16 AWE_LOG_CPU_OVERFLOW_MSG CPU overflow warnings
32 AWE_LOG_FRAMEWORK_MSG Framework-level messages
64 AWE_LOG_HEAP_MSG Heap allocation messages
128 AWE_LOG_MODULE_MSG Module-level messages
256 AWE_LOG_INSTANCE_CRASH_STAT Instance crash statistics
512 AWE_LOG_MODULE_ACCESS_SET Module parameter set operations
1024 AWE_LOG_MODULE_ACCESS_GET Module parameter get operations
-1 AWE_LOG_ALL_TYPE_MASK All categories (default)

AWE Core Event Log

The Event module can emit typed payloads (strings, integers, floats, etc.) at runtime. When AwecoreEventLoggingEnable is set, these are captured in logs/event_logging.txt and shown in the AWE Server Messages tab. A message is generated for each event registration, deregistration, and trigger.

awe_server.ini key Default Description
AwecoreEventLoggingEnable 0 Enable Event module logging. Output goes to logs/event_logging.txt and the AWE Server Messages tab.

The following eventType values receive special handling on the Native target — their payloads are interpreted and logged as the corresponding type. Note that these unique eventTypes are handled only on the Native target and have no special meaning on other targets.

eventType Type
10 String
11 Signed integer
12 Unsigned integer
13 Float
14 Hex

Messages Tab Limit

ServerMaxLogMessages controls how many log entries are retained in the AWE Server Messages tab (default: 100). Increasing this value is useful when diagnosing startup sequences or high-frequency events.

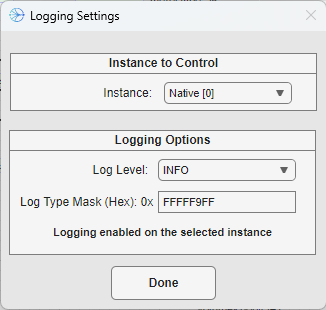

Logging Options Menu

Non-native targets can also support AWE Core logging. The currently connected target's log settings (log level and log type mask) can be changed from the Tools -> Logging Options menu in Designer. This control can help increase log levels while debugging on the target without having to recompile the BSP code.

Upon opening the menu, the targets current logging settings are shown as the default values. Changing Log Level or Log Type Mask will apply immediately to the selected Instance.

Be aware that changes made with this menu are not persistent - if the target is restarted, the default log options for the system are reapplied. This goes for the Native target as well - if AWE_Server is restarted, then the log settings from AWE_Server.ini are applied.
