Sound Design Pack's Wave Player Modules with Embedded Examples

This application note describes the Wave Player modules under Sound Design Module Pack in Audio Weaver and demonstrates its embedded uses.

RAM vs FFS vs Flash Players

The first step here would be to understand the fundamental differences between each Wave Player types.

Feature	Wave Player RAM	Wave Player FFS	Wave Player Flash
Basic Workings	Reads audio samples embedded within the module’s buffer array (AWE heap)	Reads audio data from samples stored in the AWE flash file system as .bin files in RAM	Reads audio data from samples stored in the AWE flash file system on the target flash device
Ease of Use	Very easy to use; ideal for initial implementation phases	Moderate difficulty; BSP support required on embedded targets	Moderate difficulty; BSP support required on embedded targets
Runtime WAV Filename Exchange	❌ Not possible	✅ Supported	✅ Supported
Memory Consumption	Highest; bloated AWS/AWB due to embedded samples	Low memory footprint	Low memory footprint
Usability in Native Mode	Directly usable in Native Mode	Requires FFSWrapper and other modules; more complex	Uses file operations; path set via File → Set File Search Path
Wave File Dependencies	Requires large heap size	Needs FFS Player Module and Audio File Generator	Depends on AWE Flash File Manager to flash wave/bin files
BSP Integration Dependencies	Samples embedded in AWB	Requires binary file start address	Requires direct flash access by AWE instance

One-Shot vs Loop Player

All of the Wave Player variants come with two subdivision of the playback output types namely One Shot and Loop players which will be discussed in the document below.

Feature	One-Shot	Loop
Basic Workings	Playback continues until the end of the file is reached and then it stops	Outputs wave data in loop mode
Trigger Based	Playback starts after a low-to-high trigger edge is received on the ‘trigger’ pin	Playback starts as soon as the module is enabled (1 = Enable, 0 = Disable)
Pitch Shifting Capabilities	✅ Yes	✅ Yes

** Wave Player - RAM**

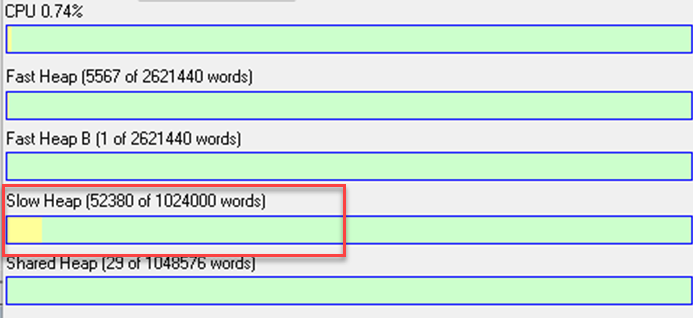

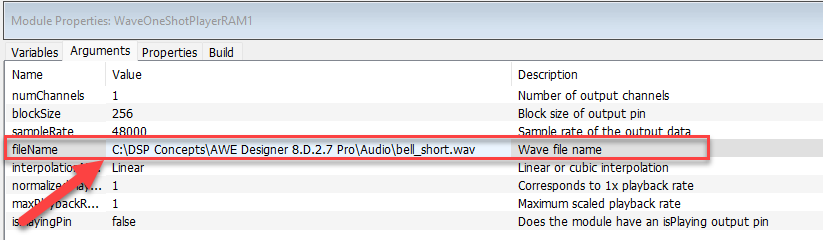

The RAM based wav player modules basically read the audio samples embedded within the module’s buffer array (Audio Weaver Heap). While connected to an Audio Weaver Server they generally show up in the Slow Heap section. The wave file name along with the path is specified in the Wave Player RAM.

Embedded Example

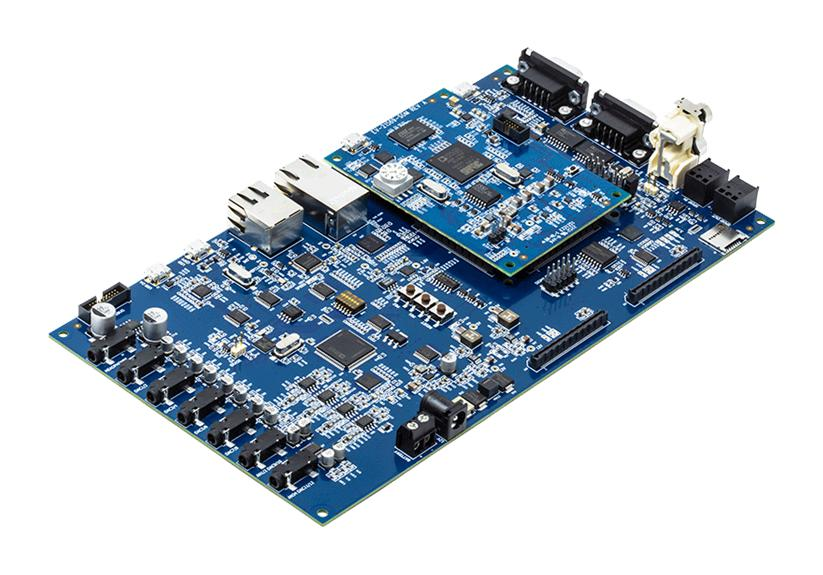

In this section we will look at a RAM based example on a target hardware. For this example we are using SHARC 21569 with EV-SOMCRR-EZKIT. We will be using this target hardware throughout this Application Note to maintain consistency. For more details about the board please visit EV-21569-EZKIT Website

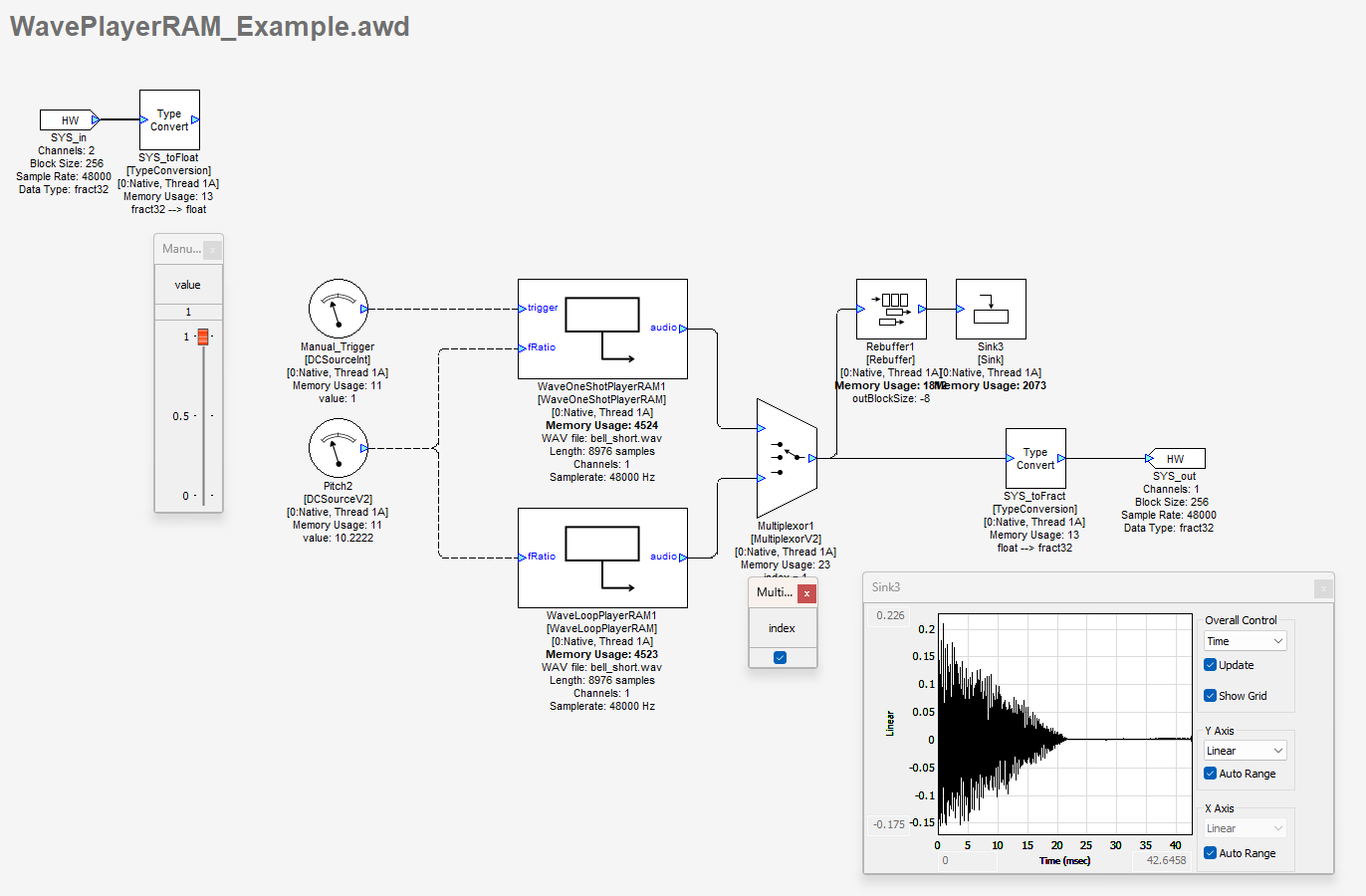

In this example, we are using two Wave Players namely WaveOneShotPlayerRAM and WaveLoopPlayerRAM, to switch between the two wave players we are using a Multiplexor module. The two wave files used in this example are the bell_short.wav and turn-signal.wav. By deselecting the Multiplexor module, the WaveOneShotPlayerRAM path is selected. The trigger for this module requires a a rising edge (0 → 1). Playback continues until the end of the file is reached and then it stops. Retrigger while being in the middle of the playback has no effect and will be ignored. The filename in RAM based players cannot be changed during runtime and will continue with the wave file initially inserted. The wave file is transferred into the Wave RAM player’s file buffer which in turn bloats the awb for the target platform.

Wave Player - FFS

Basic workings of Wave FFS Players

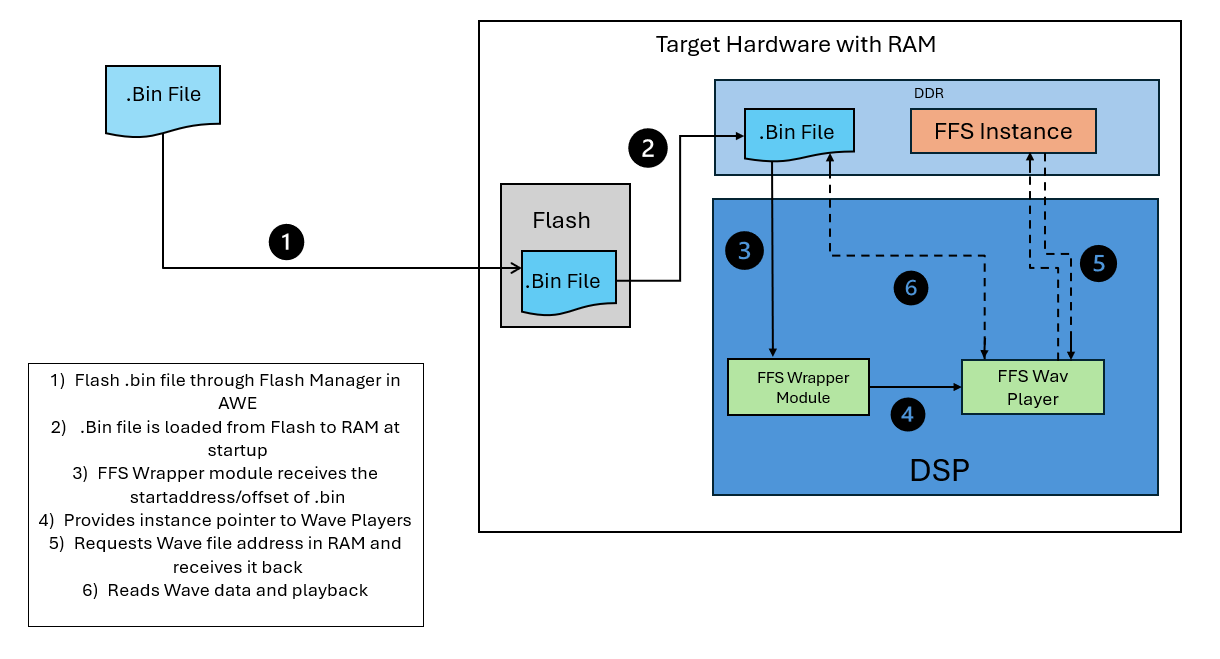

The FFS-based Wave Players utilize an emulated AWE Flash File System to access and stream wave sample data. These players operate by interfacing with a structured flash file system image that encapsulates a collection of audio assets, collectively referred to as audio libraries.

Within this system, the filename variable in the module acts as a key identifier, specifying the target audio file to be located and parsed within the flash file system. After retrieval, the wave player processes and streams the wave sample in real-time, ensuring efficient playback directly from the RAM without requiring intermediate extraction. This approach optimizes memory usage and reduces latency, making it suitable for embedded or resource-constrained environments.

Audio Library Manager*_*Application_

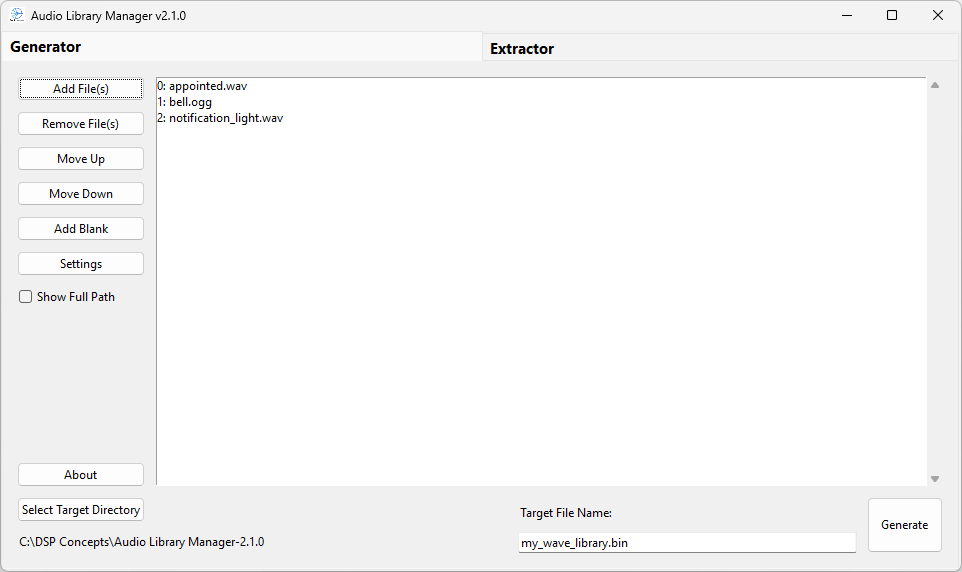

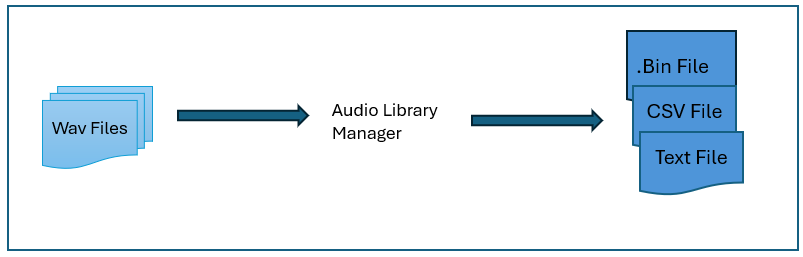

The Binary File (Wavelib.bin) is generated by the Audio Library Manager*_*Application previously know as the “WaveLibraryGenerator”_. It is an application with a GUI to easily create wave flash file systems that contain audio files to be played on a target hardware or to be tested on a native target. Since it is a standalone app, it is relatively independent of the other software in the sound design module pack. For more details please see documentation on Audio Library Manager

Embedded Example

In this section we will discuss and explain an FFS Example with the same SHARC 21569 EZKit Board as previously used. Please download the Example folder with awd, wav files and binary files required for the example.
FFS_Example.zip

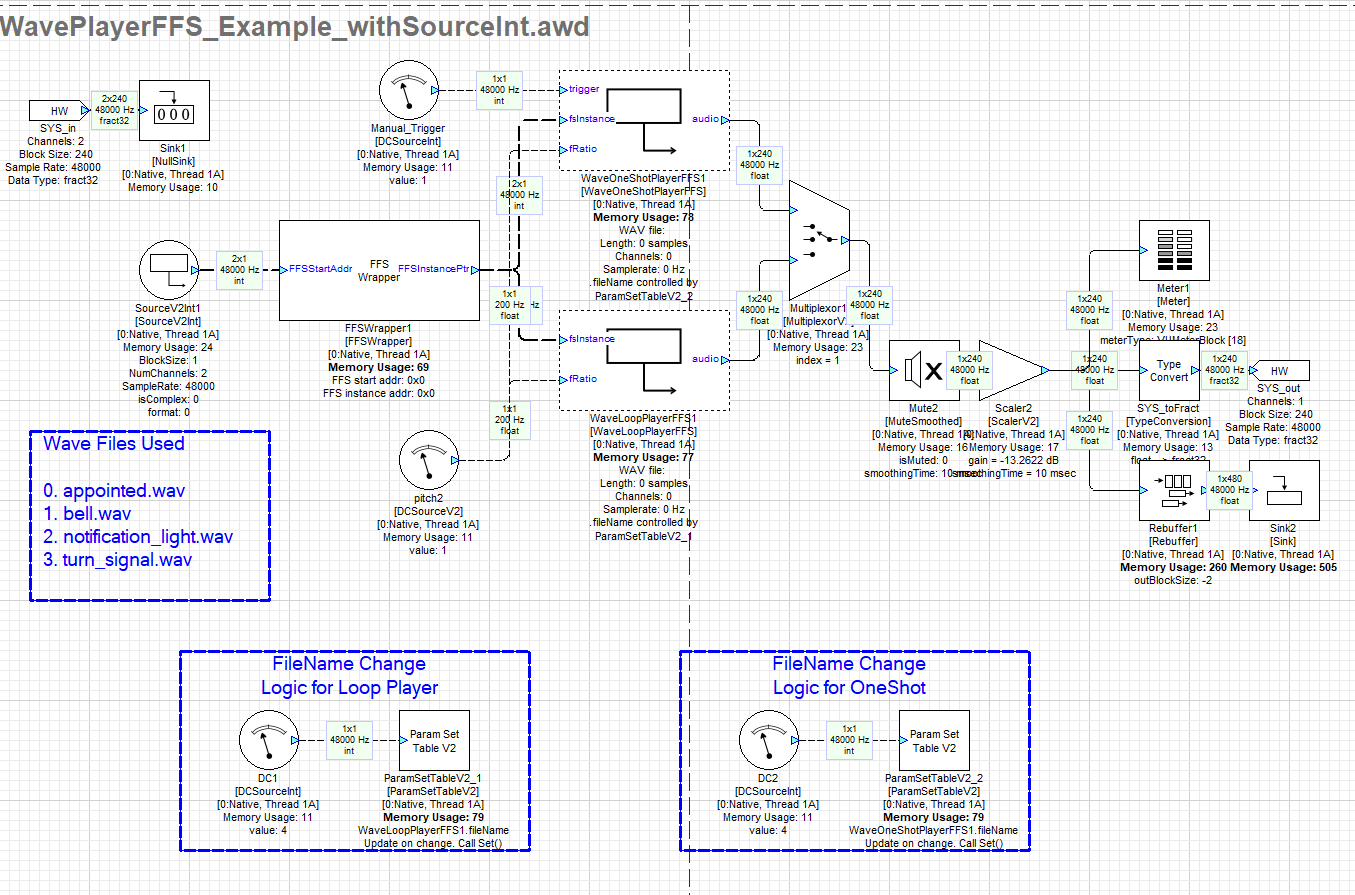

Method 1)Example with FFS Start Address provided through Source Int

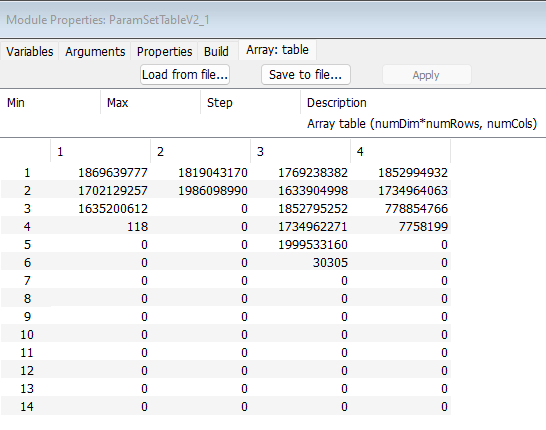

The example below uses a SourceInt to Input the Starting Address of FFS. This is the most common and preferred use case. The _DCSourceInt _modules is used to select wave files from indexes 0->3. The ‘FFS_wave_library’ csv file contains the audio file names in uint32 format is loaded into the ParamSetTable Module array tab. This is done for both the ParamSetTable modules in this example.

By deselecting the Multiplexor module, the WaveOneShotPlayerFFS path is selected. The Trigger for this module requires a a rising edge (0 → 1). Playback continues until the end of the file is reached and then it stops. Retrigger while being in the middle of the playback has no effect and will be ignored.

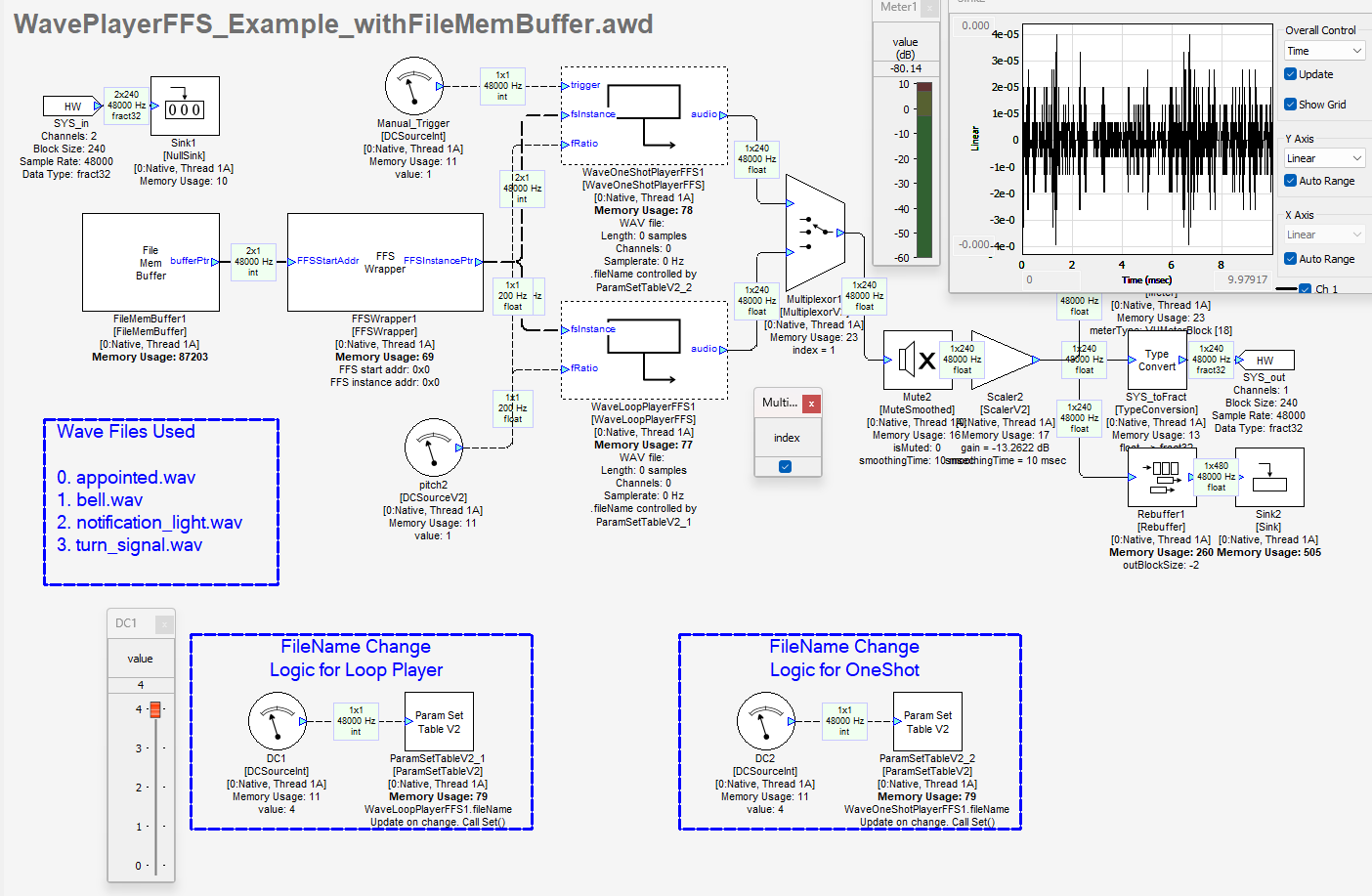

Method 2)Example with FFS Start Address provided through File Mem Buffer Module

In this example we are using FileMemBuffer from the Sound design module pack to input the FFS_wave_library.bin file in the fileName argument for the FileMemBuffer module as shown in the screenshot below. The path to Binary file is inserted in the Designer _File - > File Search Path. _

DCSourceInt module is used to select wave files from indexes 0->3. The ‘FFS_wave_library’ csv file contains the audio file names in uint32 format is loaded into the ParamSetTable Module array tab. This is done for both the ParamSetTable modules in this example.

By deselecting the Multiplexor module, the WaveOneShotPlayerFFS path is selected. The Trigger for this module requires a a rising edge (0 → 1). Playback continues until the end of the file is reached and then it stops. Retrigger while being in the middle of the playback has no effect and will be ignored.
The addition of FileMemBuffer module bakes the Binary file into the AWB when the target files are generated.

Wave Loop Player - Flash

The Flash-based Wave Player retrieves and processes audio data from pre-stored wave samples residing within the AWE flash file system on the designated target flash storage device. It directly interfaces with the structured flash memory layout, efficiently parsing and streaming audio samples for real-time playback. The system leverages low-level flash memory access mechanisms to optimize read operations, ensuring minimal latency and efficient resource utilization. These modules require an additional input as the fsValid Pin which is Valid when set to '1'.

Embedded Example

In this section we will discuss and explain an Flash Example with the same SHARC 21569 EZKit Board as previously used. Please download the Example folder with awd, Wav files and Bin files required for the example.
Flash_Example.zip

Method 1)__Adding the Wave Files directly to the AWE Flash File Manager

In the example shown below we add the selected wave files directly to the Flash Memory on 21569 SOM. The flash memory reserved for this file system may be part of the processor chip itself, an external part or simulated in the target file system. For this AWE Flash Manager is used, the wave files are added to the Flash Manager and flashed onto the target Flash Memory.

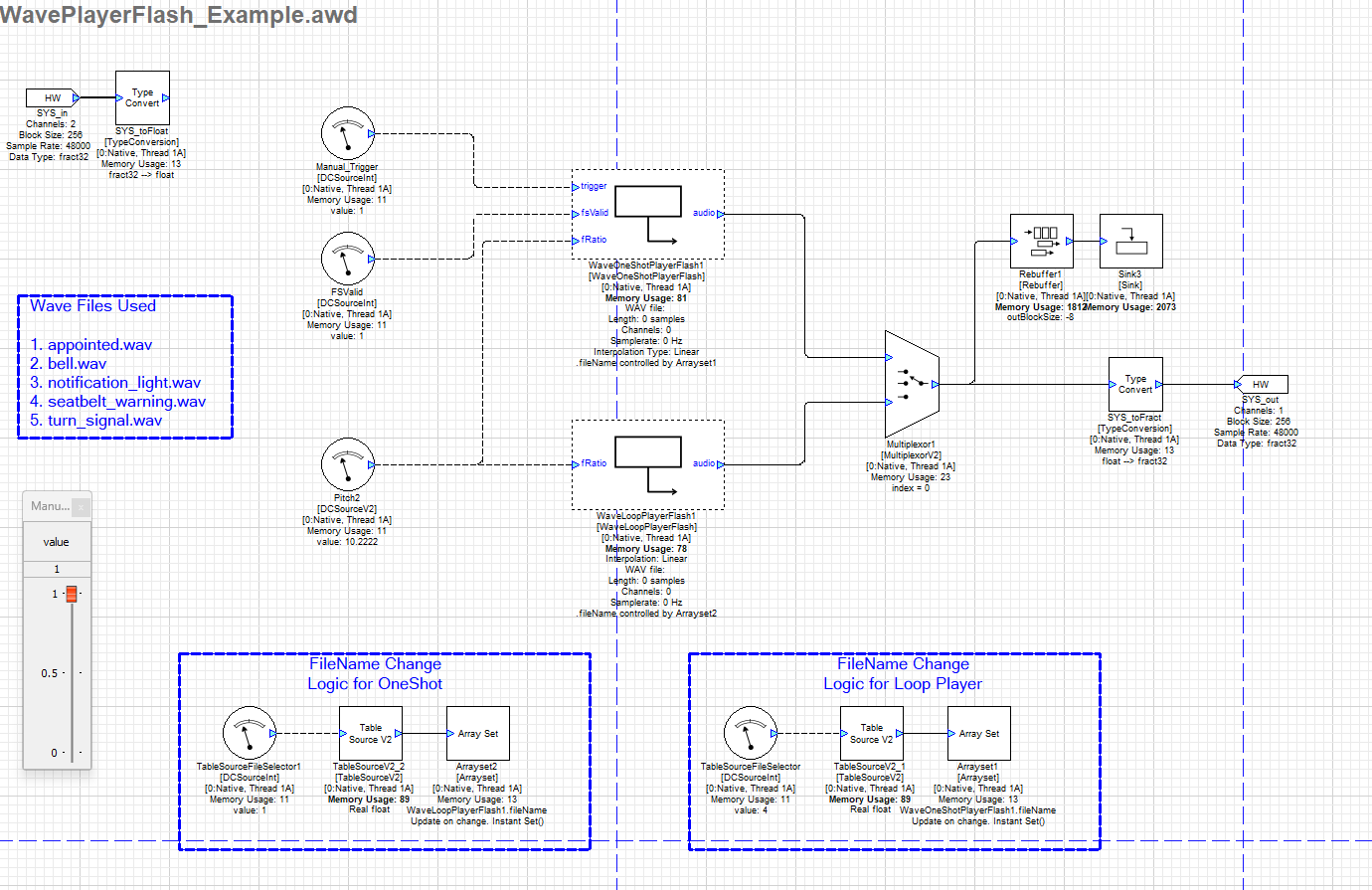

After the files are successfully flashed, the Flash Wave Players are able to access the wave files during runtime. In the example below we are using two types of Flash wav players namely OneShot and Loop, while the OneShot is triggered. The output from these Wave modules is switched using the Multiplexor1 module. In this example the fileName argument for the wave players are being set by ArraySet module

** Method 2)__Adding the Wave Files to a Bin and then flashing via AWE Flash File Manager**

Adding Files to the Target Flash File System

Traditionally, files are added to the target Flash File System (FFS) using the Flash Manager within the AWE Server. However, this approach has limitations, as it requires an active connection between the Server and the target, and each file must be manually added.

To streamline this process, use the Audio File Manager to generate a Bin file.

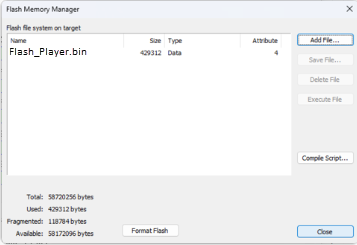

The generated Flash_Player.bin file is flashed through the AWE Flash Manager.

Once the binary file is successfully flashed , the WavePlayerFlash_Example.awd can be run while server is connected to the target.

Common Errors in the SND Modules

1. Error # -50 → E_FILE_NOT_FOUND
   This error can occur in two cases:
   a) When the path to the wave file is not reachable or properly defined. Maximum absolute file path should not be more than 512 characters. It can also be due to corrupt Bin file or csv file.
   b) When directory entry for file not found (“force stop” is a valid use case!)

2. Error # -51 → E_ILLEGAL_FILE_ATTRIBUTE
   Occurs when the wave data sample bit resolution is not 16 bit.

3. Error # -56 → E_ERROR_READING_FLASH_MEMORY
   Binary file not found or corrupted.

4. Error# -47 -- >E_NO_MORE_FILES
   Binary file not found or corrupted.
